Jolla and SailfishOS

Bluetooth Discovery

2016-05-29 18:38

Project code is up on Github.

2016-05-29 15:00

The time has come to get more serious about some software development for the Jolla phone.

Since I have been playing around with all the Cypress PSoC BLE stuff lately, let's see what the Jolla has to offer.

To make it short:

• There is no "out of the box" Blutooth Low Energy (BLE) support
  • Not in the SailfishOS
  • Not in any API I could find

• Bluetooth (BR ? / EDR ?) aka Bluetooth classic is supported
  • by the SailfishOS
  • by the Qt5 libraries

Bluetooth in Qt5 on Jolla

Ok, the goal here is not to write a full featured application that uses Bluetooth for something meaningful, but to write a most simple programm that proves the concept on how to access the Bluetooth stack.

While there is a QML type BluetoothDiscoveryModel I did not like it, when I tried to use it. It seems to me, that working directly with the QBluetooth... C++ classes from the Qt libraries to implement the business logic and than just having an adapter for the views implemented in QML, is the much cleaner approach.

So I fired up my Qt Creator 3.5.0 (Sailfish OS), that is based on Qt 5.0.0 and was build on May 4th 2016.

First "Same procedure as every year."

• File | New File or Project ...
• SailfishOS | SailfishOS Qt Quick Application

This creates the default template application and configures the project.

Than:

• I got rid of SecondPage.qml
• And did some refactoring

In the final step of preparation:

• I inherited the a new C++ class BluetoothDiscovery from QObject
• And did register it as a new qmlType in main() in BluetoothDiscovery.cpp

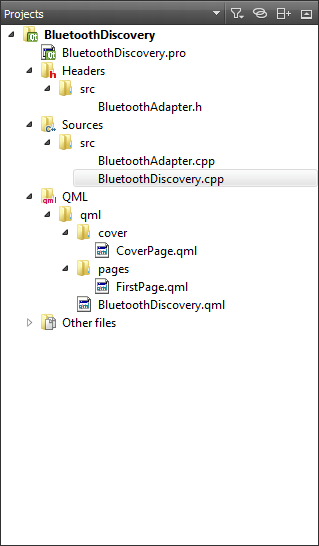

Now the project looks like this:

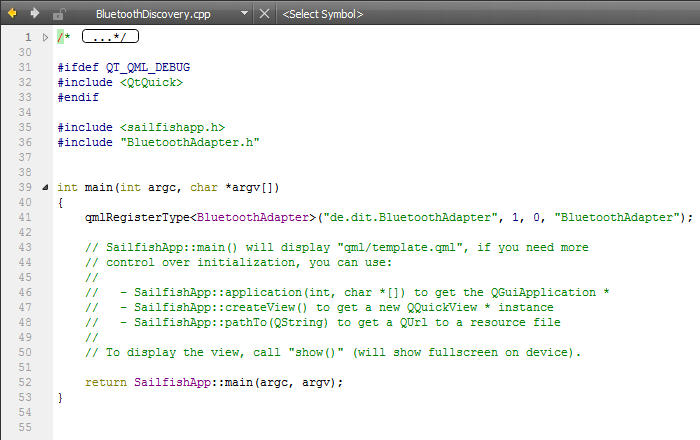

And this is the changed main() function:

I did not change anything in BluetoothDiscovery.qml or CoverPage.qml.

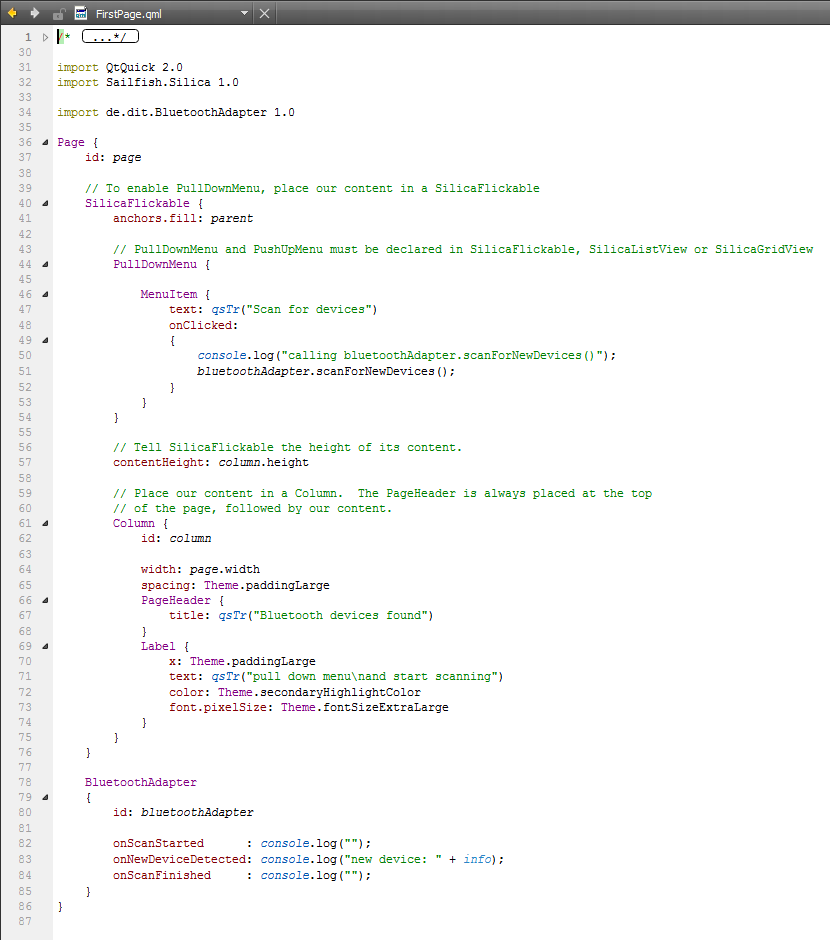

In FirstPage.qml I deleted all references to SecondPage.qml and filled some labels with new text..

The more interesting changes though, are:

• line 34 imports our very own BluetoothAdapter
  that is declared in BluetoothAdapter.h
  and implemented in BluetoothAdapter.cpp
• lines 78..85 create an object of the BluetoothAdapter class
  • it is named bluetoothAdapter
  • and three anonymous slots (event handler functions) are defined for BluetoothAdapter's signals,
    each printing a debug message on the debug console (see Qt Creator's "Application Output")

A scan for new devices is initiated by a user command.

• lines 49..53 define an anonymous event handler function for MenuItem's click signal, that
  • logs a status message to the debug console (line 50)
  • invokes bluetoothAdapter's scanForNewDevices() method (line 51)

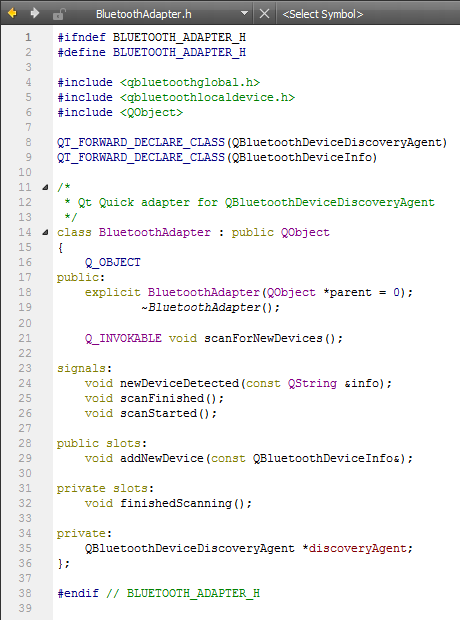

The BluetoothAdapter class is declared in src/BluetoothAdapter.h

as a QObject child.

By registering it as a qmlType in main() in src/BluetoothDiscovery.cpp

We make it accessable for the QML system.

• line 21 declares a function, that can be called from QML code (see FirstPage.qml line 51)
• lines 23..26 declare the signals that the BluetoothAdapter might emit.
• linea 28..29 declare a slot for a signal that the BluetoothAdapter is ready to receive.

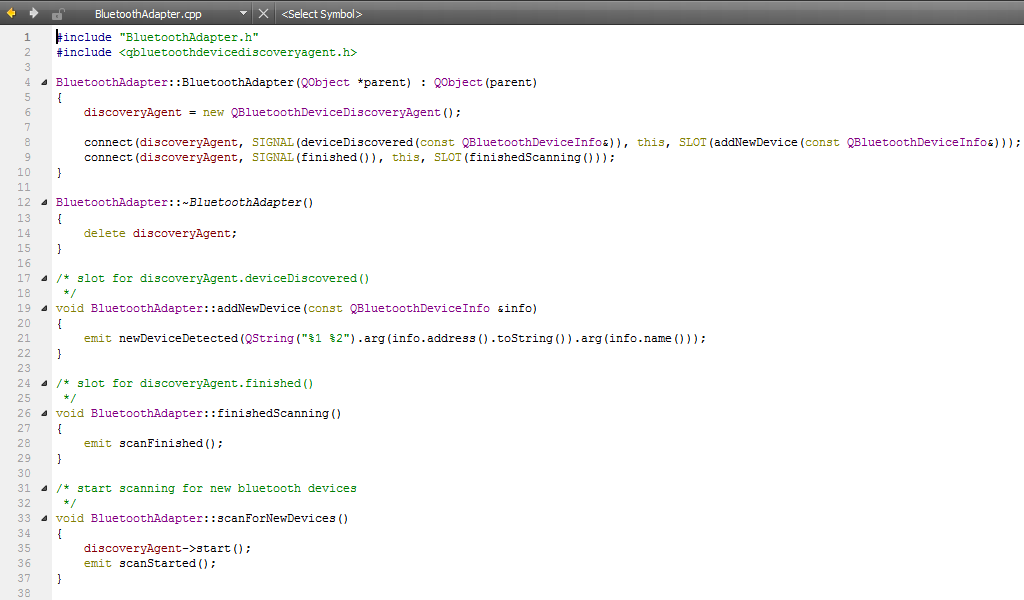

The implementation is strait forward:

• lines 4..10 the constructor
  • creates a new instance of Qt's QBluetoothDeviceDiscoveryAgent class (line 6)
  • assigns BluetoothAdapter's addNewDevice() slot to QBluetoothDeviceDiscoveryAgent's deviceDiscovered() signal (line 8)
  • assigns BluetoothAdapter's finishedScanning() slot to QBluetoothDeviceDiscoveryAgent's finished() signal (line 9)
• lines 12..16 the de-constructor
  • deletes the instance of Qt's QBluetoothDeviceDiscoveryAgent class (line 14), we created in the constructor
• lines 19..22 the slot addNewDevice()
  • converts some information about the discoverd device into a string and emits the newDeviceDetected() signal (line 21)
• lines 26..29 the slot finishedScanning()
  • emits the scanFinished() signal (line 28)
• lines 23..37 if scanForNewDevices() is invoked (called)
  • discoveryAgen's start() function is invoked (line 35)
    This call is non-blocking, so the next command is executed right away.
  • emits the scanStarted() signal (line 36)

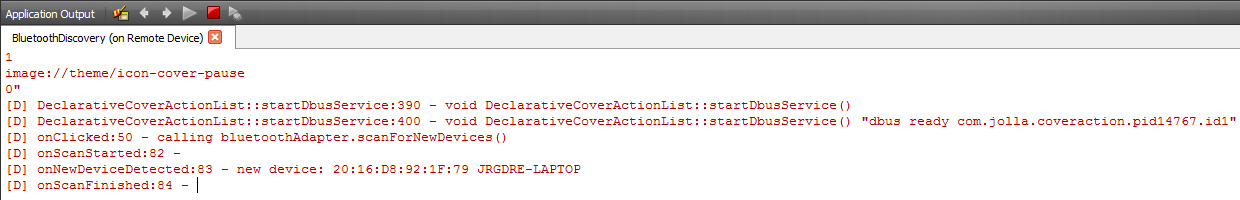

If everything works as expected, something like this is the result you should see:

The QBluetoothDeviceDiscoveryAgent object has an internal list of devices it already knows. So it is normal that, if you start the scan again, only devices are reported, that have not been detected in any scan before, since the program was started.

Having the basics in place, how hard can it be to do the more advanced stuff? ;-)
